SRP control

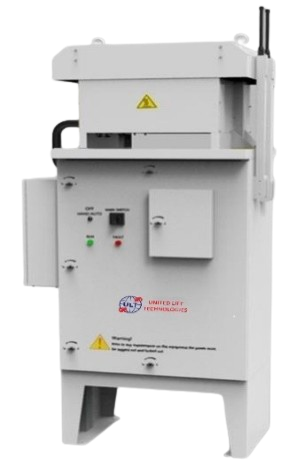

VFD Rod Pump Controller

Pump-off control, motor control and a VFD in one cabinet.

7 intouch screen
6cables to wire
60+ daysonboard data
Drag to rotate

Design features

All-in-One Control

Combines POC, motor control, and VFD for streamlined operation

Simple Installation

Only 6 cables needed (3 power + 3 motor) for basic functions

Wireless Monitoring

Optional real-time data access via mobile or satellite

Cloud Connectivity

Store and retrieve well data anytime (optional)

Intelligent Pump Control

Field-proven, efficient management of sucker-rod systems

Rod pump controller technical details

Field-proven pump-off control for sucker-rod systems
IoT-Ready
Supports cloud connectivity for advanced computing & data storage
Wireless Connectivity
Wi-Fi, Bluetooth, ZigBee, and 2.4G for easy device pairing
Versatile I/O Options
Ethernet, RS485/RS232, CAN for SCADA & equipment integration
7” Touch Screen
User-friendly interface for real-time monitoring & adjustments
Extended Data Storage
Built-in memory (60+ days) + USB/micro-SD expansion
Remote Access
Control and monitor via phone, laptop, or cloud platform

Rod pump controller FAQ

What is a rod pump controller?

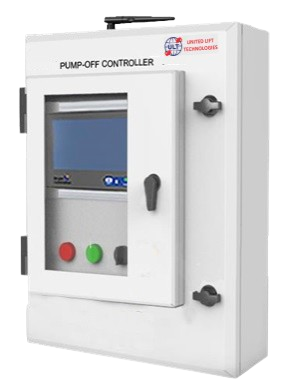

A rod pump controller, or pump-off controller (POC), watches a sucker rod pumping well and acts when the downhole pump is no longer filling, so the unit is not left pumping off. The ULT controller combines pump-off control, motor control and a VFD in one cabinet.

Why put the VFD in the same cabinet?

One cabinet handles control and motor speed, so the pumping speed can be adjusted rather than only starting and stopping the unit. Basic functions need only 6 cables: 3 power and 3 motor.

What load and position input does it use?

It works with polished rod load and position sensors, including the solar-powered ULT wireless load cell, which has no cables at the polished rod.

Can it connect to SCADA?

Yes. I/O includes Ethernet, RS485/RS232 and CAN for SCADA and equipment integration, with Wi-Fi, Bluetooth, ZigBee and 2.4G for device pairing and optional mobile or satellite data access.

How much data does it store?

More than 60 days in built-in memory, expandable by USB or micro-SD, with optional cloud storage. The 7 in touch screen shows live data on site, and the well can be monitored from a phone, laptop or the cloud.
